What is "Fuel From Water?"

Fuel from water is the process of removing the 2 hydrogen molecules from the H2O so that the hydrogen may be used as "hydrogen fuel."

_______________________________________________________

_______________________________________________________

What is a Hydrogen Fuel Cell?

Hydrogen's potential use in fuel and energy applications includes powering vehicles, running turbines or fuel cells to produce electricity, and generating heat and electricity for buildings. The current focus is on hydrogen's use in fuel cells.

A fuel cell works like a battery but does not run down or need recharging. It will produce electricity and heat as long as fuel (hydrogen) is supplied. A fuel cell consists of two electrodes—a negative electrode (or anode) and a positive electrode (or cathode)—sandwiched around an electrolyte. Hydrogen is fed to the anode, and oxygen is fed to the cathode. Activated by a catalyst, hydrogen atoms separate into protons and electrons, which take different paths to the cathode. The electrons go through an external circuit, creating a flow of electricity. The protons migrate through the electrolyte to the cathode, where they reunite with oxygen and the electrons to produce water and heat. Fuel cells can be used to power vehicles or to provide electricity and heat to buildings.

The primary fuel cell technologies under development are:

Phosphoric Acid Fuel Cells

A phosphoric acid fuel cell (PAFC) consists of an anode and a cathode made of a finely dispersed platinum catalyst on carbon paper, and a silicon carbide matrix that holds the phosphoric acid electrolyte. This is the most commercially developed type of fuel cell and is being used in hotels, hospitals, and office buildings. The phosphoric acid fuel cell can also be used in large vehicles, such as buses.

Proton-Exchange Membrane Fuel Cells

The proton-exchange membrane (PEM) fuel cell uses a fluorocarbon ion exchange with a polymeric membrane as the electrolyte. The PEM cell appears to be more adaptable to automobile use than the PAFC type of cell. These cells operate at relatively low temperatures and can vary their output to meet shifting power demands. These cells are the best candidates for light-duty vehicles, for buildings, and much smaller applications.

Solid Oxide Fuel Cells

Solid oxide fuel cells (SOFC) currently under development use a thin layer of zirconium oxide as a solid ceramic electrolyte, and include a lanthanum manganate cathode and a nickel-zirconia anode. This is a promising option for high-powered applications, such as industrial uses or central electricity generating stations.

Direct-Methanol Fuel Cells

A relatively new member of the fuel-cell family, the direct-methanol fuel cell (DMFC) is similar to the PEM cell in that it uses a polymer membrane as an electrolyte. However, a catalyst on the DMFC anode draws hydrogen from liquid methanol, eliminating the need for a fuel reformer.

Molten Carbonate Fuel Cells

The molten carbonate fuel cell uses a molten carbonate salt as the electrolyte. It has the potential to be fueled with coal-derived fuel gases or natural gas.

Alkaline Fuel Cells

The alkaline fuel cell uses an alkaline electrolyte such as potassium hydroxide. Originally used by NASA on space missions, it is now finding applications in hydrogen-powered vehicles.

Regenerative Fuel Cells

This special class of fuel cells produces electricity from hydrogen and oxygen, but can be reversed and powered with electricity to produce hydrogen and oxygen. Hydrogen Fuel
Since the early 19th century, scientists have recognized hydrogen as a potential source of fuel. Current uses of hydrogen are in industrial processes, rocket fuel, and spacecraft propulsion. With further research and development, this fuel could also serve as an alternative source of energy for heating and lighting homes, generating electricity, and fueling motor vehicles. When produced from renewable resources and technologies, such as hydro, solar, and wind energy, hydrogen becomes a renewable fuel.


What is Hydrogen?

Hydrogen is the simplest and most common element in the universe. It has the highest energy content per unit of weight—52,000 British Thermal Units (Btu) per pound (or 120.7 kilojoules per gram)—of any known fuel. Moreover, when cooled to a liquid state, this low-weight fuel takes up 1/700 as much space as it does in its gaseous state. This is one reason hydrogen is used as a fuel for rocket and spacecraft propulsion, which requires fuel that is low-weight, compact, and has a high energy content.

In a free state and under normal conditions, hydrogen is a colorless, odorless, and tasteless gas. The basic hydrogen (H) molecule exists as two atoms bound together by shared electrons. Each atom is composed of one proton and one orbiting electron. Since hydrogen is about 1/14 as dense as air, some scientists believe it to be the source of all other elements through the process of nuclear fusion. It usually exists in combination with other elements, such as oxygen in water, carbon in methane, and in trace elements as organic compounds. Because it is so chemically active, it rarely stands alone as an element.

When burned (or combined) with pure oxygen, the only by products are heat and water. When burned (or combined) with air, which is about 68% nitrogen, some oxides of nitrogen (Nitrogen Oxides or NOx) are formed. Even then, burning hydrogen produces less air pollutants relative to fossil fuels.

Producing HydrogenHydrogen bound in organic matter and in water makes up 70% of the earth's surface. Breaking up these bonds in water allows us produce hydrogen and then to use it as a fuel. There are numerous processes that can be used to break these bonds. Described below are a few methods for producing hydrogen that are currently used, or are under research and development.

Most of the hydrogen now produced in the United States is on an industrial scale by the process of steam reforming, or as a byproduct of petroleum refining and chemicals production. Steam reforming uses thermal energy to separate hydrogen from the carbon components in methane and methanol, and involves the reaction of these fuels with steam on catalytic surfaces. The first step of the reaction decomposes the fuel into hydrogen and carbon monoxide. Then a "shift reaction" changes the carbon monoxide and water to carbon dioxide and hydrogen. These reactions occur at temperatures of 392° F (200 ° C) or greater.

Another way to produce hydrogen is by electrolysis. Electrolysis separates the elements of water—H and oxygen (O)—by charging water with an electrical current. Adding an electrolyte such as salt improves the conductivity of the water and increases the efficiency of the process. The charge breaks the chemical bond between the hydrogen and oxygen and splits apart the atomic components, creating charged particles called ions. The ions form at two poles: the anode, which is positively charged, and the cathode, which is negatively charged. Hydrogen gathers at the cathode and the anode attracts oxygen. A voltage of 1.24 Volts is necessary to separate hydrogen from oxygen in pure water at 77° Fahrenheit (F) and 14.7 pounds per square inch pressure [25° Celsius (C) and 1.03 kilograms (kg) per centimeter squared.] This voltage requirement increases or decreases with changes in temperature and pressure.

The smallest amount of electricity necessary to electrolyze one mole of water is 65.3 Watt-hours (at 77° F; 25 degrees C). Producing one cubit foot of hydrogen requires 0.14 kilowatt-hours (kWh) of electricity (or 4.8 kWh per cubic meter).

Renewable energy sources can produce electricity for electrolysis. For example, Humboldt State University's Schatz Energy Research Center designed and built a stand-alone solar hydrogen system. The system uses a 9.2 kilowatt (KW) photovoltaic (PV) array to provide power to compressors that aerate fish tanks. The power not used to run the compressors runs a 7.2 kilowatt bipolar alkaline electrolyzer. The electrolyzer can produce 53 standard cubic feet of hydrogen per hour (25 liters per minute). The unit has been operating without supervision since 1993. When there is not enough power from the PV array, the hydrogen provides fuel for a 1.5 kilowatt proton exchange membrane fuel cell to provide power for the compressors.

Steam electrolysis is a variation of the conventional electrolysis process. Some of the energy needed to split the water is added as heat instead of electricity, making the process more efficient than conventional electrolysis. At 2,500 degrees Celsius water decomposes into hydrogen and oxygen. This heat could be provided by a concentrating solar energy device. The problem here is to prevent the hydrogen and oxygen from recombining at the high temperatures used in the process.

Thermochemical water splitting uses chemicals such as bromine or iodine, assisted by heat. This causes the water molecule to split. It takes several steps—usually three—to accomplish this entire process.

Photoelectrochemical processes use two types of electrochemical systems to produce hydrogen. One uses soluble metal complexes as a catalyst, while the other uses semiconductor surfaces. When the soluble metal complex dissolves, the complex absorbs solar energy and produces an electrical charge that drives the water splitting reaction. This process mimics photosynthesis.

The other method uses semiconducting electrodes in a photochemical cell to convert optical energy into chemical energy. The semiconductor surface serves two functions, to absorb solar energy and to act as an electrode. Light-induced corrosion limits the useful life of the semiconductor.

Researchers at the University of Tennessee and U.S. Department of Energy's (DOE) Oak Ridge National Laboratory are researching ways to use photosynthesis to produce hydrogen from sunlight. The researchers extracted two photosynthetic complexes from spinach plants; called Photosystem I and Photosystem II. The two work together to produce carbohydrates for the plant. By attaching platinum atoms to the Photosystem I complexes, the researchers were able to produce hydrogen from visible light. Unfortunately, the process required the use of an added chemical that makes the overall process impractical, but the achievement shows potential. The researchers are working to combine the platinum-Photosystem I complexes with the Photosystem II complexes, forming a molecular system that can convert light and water directly into hydrogen, without help from an added chemical.

Biological and photobiological processes can use algae and bacteria to produce hydrogen. Under specific conditions, the pigments in certain types of algae absorb solar energy. The enzyme in the cell acts as a catalyst to split the water molecules. Some bacteria are also capable of producing hydrogen, but unlike algae they require a substrate to grow on. The organisms not only produce hydrogen, but can clean up pollution as well.

Research funded by DOE has led to the discovery of a mechanism to produce significant quantities of hydrogen from algae. Scientists have known for decades that algae produce trace amounts of hydrogen, but had not found a feasible method to increase the production of hydrogen. Scientists from the University of California (UC), Berkeley, and the U.S. DOE's National Renewable Energy Laboratory found the key. After allowing the algae culture to grow under normal conditions, the research team deprived it of both sulfur and oxygen, causing it to switch to an alternate metabolism that generates hydrogen. After several days of generating hydrogen, the algae culture was returned to normal conditions for a few days, allowing it to store up more energy. The process could be repeated many times. Producing hydrogen from algae could eventually provide a cost-effective and practical means to convert sunlight into hydrogen.

Another source of hydrogen produced through natural processes is methane and ethanol. Methane (CH4) is a component of "biogas" that is produced by anaerobic bacteria. Anaerobic bacteria occur widely throughout the environment. They break down or "digest" organic material in the absence of oxygen and produce biogas as a waste product. Sources of biogas include landfills, and livestock waste and municipal sewage treatment facilities. Methane is also the principal component of "natural gas" (a major heating and power plant fuel) produced by anaerobic bacteria eons ago. Ethanol is produced by the fermentation of biomass. Most fuel ethanol produced in the United States is made from corn.

Chemical engineers at the University of Wisconsin-Madison have developed a process to produce hydrogen from glucose, a sugar produced by many plants. The process shows particular promise because it occurs at relatively low temperatures, and can produce fuel-cell-grade hydrogen in a single step. Glucose is manufactured in vast quantities from corn starch, but can also be derived from sugar beets or low-cost waste streams like paper mill sludge, cheese whey, corn stover or wood waste.

The United States, Japan, Canada, and France have investigated thermal water splitting, a radically different approach to creating hydrogen. This process uses heat of up to 5,430°F (3,000°C) to split water molecules.

Potential Uses for Hydrogen

When properly stored, hydrogen as a fuel burns in either a gaseous or liquid state. Motor vehicles and furnaces can be converted to use hydrogen as a fuel. Hydrogen has actually been used in the transportation, industrial, and residential sectors in the United States for many years. Many people in the late 19th century burned a fuel called "town gas," which is a mixture of hydrogen and carbon monoxide. Several countries, including Brazil and Germany, still distribute this fuel. Hydrogen was used in early "hot-air" balloons, and later in airships (dirigibles) during the early 1900's. Gaseous hydrogen was used in 1820 as fuel for one of the earliest internal combustion engines. The U.S. Air Force had a secret, multi-million dollar program during the 1950's, code-named "Suntan," to develop hydrogen as a fuel for airplanes. Currently, industries use large quantities of hydrogen for refining petroleum, and for producing ammonia and methanol. The Space Shuttle uses hydrogen as fuel for its rockets. Automobile manufacturers have developed hydrogen-powered cars.

Burning hydrogen creates less air pollution than gasoline or diesel. Hydrogen also has a higher flame speed, wider flammability limits, higher detonation temperature, burns hotter, and takes less energy to ignite than gasoline. This means that hydrogen burns faster, but carries the danger of pre-ignition and flashback. While hydrogen has its advantages as a vehicle fuel it still has a long way to go before it can be used as a substitute for gasoline. This is mainly due to the investment required to develop a hydrogen production and distribution infrastructure.

However, things are getting started in this regard. Vehicle manufacturers Honda and BMW have set up hydrogen fueling stations as part of their efforts to develop fuel cell powered cars. At Honda's research and development center in Torrance, California, a PV array electrolyses hydrogen from water. The array generates enough hydrogen to power one fuel-cell vehicle. Additional power from the power grid is used to increase the hydrogen production capacity. The new station is supporting Honda's fuel cell vehicle development program for hydrogen production, storage, and fueling. Honda and a fuel cell developer are also working together on a "home" hydrogen refueling system for fuel cell vehicles. BMW opened a hydrogen fueling station at the company's engineering and emissions control test center in Oxnard, California. BMW is taking a different approach than most car companies, burning hydrogen directly in advanced internal-combustion engines, and is testing these vehicles at the Oxnard facility.

The California Fuel Cell Partnership (CaFCP) is also building a hydrogen infrastructure. The CaFCP commissioned its first "satellite" hydrogen fueling system in late October 2002, in Richmond, California, about 70 miles from the CaFCP headquarters and a primary refueling facility in West Sacramento. This extends the range over which the CaFCP's prototype fuel cell vehicles can be driven. The fueling system uses electrolysis to generate hydrogen from water and includes a storage unit capable of holding 104 pounds (47 kilograms) of hydrogen. It is capable of fueling a small fleet of vehicles and requires only one or two minutes per refueling.

In November 2002, the world's first hydrogen energy station that can provide fuel for vehicles and also produce electricity opened in Las Vegas Nevada. The station is located in the city's vehicle maintenance and operation service center. It combines an on-site hydrogen generator, compressor, liquid and gaseous hydrogen storage tanks, dispensing systems, and a stationary fuel cell. It is capable of dispensing hydrogen, hydrogen-enriched natural gas, and compressed natural gas. DOE is also working with the city to convert municipal vehicles to operate on hydrogen.

Fuel cells are a type of technology that use hydrogen to produce useful energy. In fuel cells, electrolysis is reversed by combining hydrogen and oxygen through an electrochemical process, which produces electricity, heat, and water. The U.S. space program has used fuel cells to power spacecraft for decades. Fuel cells capable of powering automobiles and buses have been and are being developed. Several companies are developing fuel cells for stationary power generation. Most major automobile manufacturers are developing fuel cell powered automobiles.

Hydrogen could be considered a way to store energy produced from renewable resources such as solar, wind, biomass, hydro, and geothermal. For example, when the sun is shining, solar photovoltaic systems can provide the electricity needed to separate the hydrogen (as described above regarding Humboldt State University's Research Center). The hydrogen could then be stored and burned as fuel, or to operate a fuel cell to generate electricity at night or during cloudy periods.

Storing Hydrogen

In order to use hydrogen on a large scale, safe, practical storage systems must be developed, especially for automobiles. Although hydrogen can be stored as a liquid, it is a difficult process because the hydrogen must be cooled to -423° Fahrenheit (-253° Celsius). Refrigerating hydrogen to this temperature uses the equivalent of 25% to 30% of its energy content, and requires special materials and handling. To cool one pound (0.45 kg) of hydrogen requires 5 kWh of electrical energy.

Hydrogen may also be stored as a gas, which uses less energy than making liquid hydrogen. As a gas, it must be pressurized to store any appreciable amount. For large-scale use, pressurized Hydrogen gas could be stored in caverns, gas fields, and mines. The hydrogen gas could then be piped into individual homes in the same way as natural gas. Though this means of storage is feasible for heating, it is not practical for transportation because the pressurized metal tanks used for storing hydrogen gas for transportation are very expensive.

A potentially more efficient method of storing hydrogen is in hydrides. Hydrides are chemical compounds of hydrogen and other materials. Research is currently being conducted on magnesium hydrides. Certain metal alloys such as magnesium nickel, magnesium copper, and iron titanium compounds, absorb hydrogen and release it when heated. Hydrides, however, store little energy per unit weight. Current research aims to produce a compound that will carry a significant amount of hydrogen with a high energy density, release the hydrogen as a fuel, react quickly, and be cost-effective.

A company in Utah, Power Ball Technologies, has developed a process in which sodium metal is pelletized and encapsulated with polyethylene plastic. The pellets can then be containerized, transported, and then opened in a patented hydrogen generator to produce hydrogen gas. According to the company, each gallon of these pellets is capable of producing 1,307 gallons of hydrogen gas, which is an equivalent hydrogen storage density more than 7 times greater by volume than a compressed hydrogen tank storing hydrogen at 3,000 psi.

The Cost of Hydrogen

Currently the most cost-effective way to produce hydrogen is steam reforming. According to the U.S. Department of Energy, in 1995 the cost was $7.39 per million Btu ($7.00 per gigajoule) in large plant production. This assumes a cost for natural gas of $2.43 per million Btu ($2.30 per gigajoule). This is the equivalent of $0.93 per gallon ($0.24 per liter) of gasoline. The production of hydrogen by electrolysis using hydroelectricity at off peak rates costs between $10.55 to $21.10 per million Btu ($10.00 to $20.00 per gigajoule).

Hydrogen Research in the United States

Recognizing the potential for hydrogen fuel, the U.S. Department of Energy (DOE) and private organizations have funded research and development (R&D) programs for several years. DOE has a major effort to develop hydrogen as a major fuel within the next few decades.

Types of Fuel Cells

Fuel cells are classified primarily by the kind of electrolyte they employ. This determines the kind of chemical reactions that take place in the cell, the kind of catalysts required, the temperature range in which the cell operates, the fuel required, and other factors. These characteristics, in turn, affect the applications for which these cells are most suitable. There are several types of fuel cells currently under development, each with its own advantages, limitations, and potential applications.

What are Molten Carbonate Fuel Cells?

Molten Carbonate Fuel Cells (MCFC) evolved from work in the 1960's aimed at producing a fuel cell which would operate directly on coal. While direct operation on coal seems less likely today, operation on coal-derived fuel gases or natural gas is viable.

Molten Carbonate Fuel Cell Design and Operation

Molten Carbonate Fuel Cells use a molten carbonate salt mixture as its electrolyte. The composition of the electrolyte varies, but usually consists of lithium carbonate and potassium carbonate. At the operating temperature of about 1200°F (650°C), the salt mixture is liquid and a good ionic conductor. The electrolyte is suspended in a porous, insulating and chemically inert ceramic (LiA102) matrix.

The Molten Carbonate Fuel Cell reactions that occur are:

The anode process involves a reaction between hydrogen and carbonate ions (CO3=) from the electrolyte which produces water and carbon dioxide (CO2) while releasing electrons to the anode. The cathode process combines oxygen and CO2 from the oxidant stream with electrons from the cathode to produce carbonate ions which enter the electrolyte. The need for CO2 in the oxidant stream requires a system for collecting CO2 from the anode exhaust and mixing it with the cathode feed stream.

As the operating temperature increases, the theoretical operating voltage for a fuel cell decreases and with it the maximum theoretical fuel efficiency. On the other hand, increasing the operating temperature increases the rate of the electrochemical reaction and thus the current which can be obtained at a given voltage. The net effect for the Molten Carbonate Fuel Cell is that the real operating voltage is higher than the operating voltage for the Phosphoric Acid Fuel Cell at the same current density.

The higher operating voltage of the Molten Carbonate Fuel Cell means that more power is available at a higher fuel efficiency from a Molten Carbonate Fuel Cell than from a Phosphoric Acid Fuel Cell of the same electrode area. As size and cost scale roughly with electrode area, this suggests that a Molten Carbonate Fuel Cell should be smaller and less expensive than a "comparable" Phosphoric Acid Fuel Cell.

The Molten Carbonate Fuel Cell also produces excess heat at a temperature which is high enough to yield high pressure steam which may be fed to a turbine to generate additional electricity. In combined cycle operation, electrical efficiencies in excess of 60% (HHV) have been suggested for mature Molten Carbonate Fuel Cell systems.

The Molten Carbonate Fuel Cell operates at between 1110°F (600°C) and 1200°F (650°C) which is necessary to achieve sufficient conductivity of the electrolyte. To maintain this operating temperature, a higher volume of air is passed through the cathode for cooling purposes.

As mentioned above, the high operating temperature of the Molten Carbonate Fuel Cell offers the possibility that it could operate directly on gaseous hydrocarbon fuels such as natural gas. The natural gas would be reformed to produce hydrogen within the fuel cell itself.

The need for CO2 in the oxidant stream requires that CO2 from the spent anode gas be collected and mixed with the incoming air stream. Before this can be done, any residual hydrogen in the spent fuel stream must be burned. Future systems may incorporate membrane separators to remove the hydrogen for recirculation back to the fuel stream.

At cell operating temperatures of 1200°F (650°C) noble metal catalysts are not required. The anode is a highly porous sintered nickel powder, alloyed with chromium to prevent agglomeration and creep at operating temperatures. The cathode is a porous nickel oxide material doped with lithium. Significant technology has been developed to provide electrode structures which position the electrolyte with respect to the electrodes and maintain that position while allowing for some electrolyte boil-off during operation. The electrolyte boil-off has an insignificant impact on cell stack life. A more significant factor of life expectancy has to do with corrosion of the cathode.

The Molten Carbonate Fuel Cell operating temperature is about 1200°F (650°C). At this temperature the salt mixture is liquid and is a good conductor. The cell performance is sensitive to operating temperature. A change in cell temperature from 1200°F (650°C) to 1110°F (600°C) results in a drop in cell voltage of almost 15%. The reduction in cell voltage is due to increased ionic and electrical resistance and a reduction in electrode kinetics. Molten Carbonate Fuel Cells (MCFCs) are currently being developed for natural gas and coal-based power plants for electrical utility, industrial, and military applications. Molten Carbonate Fuel Cells are high-temperature fuel cells that use an electrolyte composed of a molten carbonate salt mixture suspended in a porous, chemically inert ceramic lithium aluminum oxide (LiAlO₂) matrix. Since they operate at extremely high temperatures of 650°C (roughly 1,200°F) and above, non-precious metals can be used as catalysts at the anode and cathode, reducing costs.

Improved efficiency is another reason Molten Carbonate Fuel Cells offer significant cost reductions over Phosphoric Acid Fuel Cells (PAFCs). Molten Carbonate Fuel Cells can reach efficiencies approaching 60 percent, considerably higher than the 37-42 percent efficiencies of a phosphoric acid fuel cell plant. When the waste heat is captured and used, overall fuel efficiencies can be as high as 85 percent.

Unlike alkaline, phosphoric acid, and polymer electrolyte membrane fuel cells, Molten Carbonate Fuel Cells don't require an external reformer to convert more energy-dense fuels to hydrogen. Due to the high temperatures at which Molten Carbonate Fuel Cells operate, these fuels are converted to hydrogen within the fuel cell itself by a process called internal reforming, which also reduces cost.

Molten Carbonate Fuel Cells are not prone to carbon monoxide or carbon dioxide "poisoning" —they can even use carbon oxides as fuel—making them more attractive for fueling with gases made from coal. Because they are more resistant to impurities than other fuel cell types, scientists believe that they could even be capable of internal reforming of coal, assuming they can be made resistant to impurities such as sulfur and particulates that result from converting coal, a dirtier fossil fuel source than many others, into hydrogen.

The primary disadvantage of current Molten Carbonate Fuel Cell technology is durability. The high temperatures at which these cells operate and the corrosive electrolyte used accelerate component breakdown and corrosion, decreasing cell life. Scientists are currently exploring corrosion-resistant materials for components as well as fuel cell designs that increase cell life without decreasing performance.

What are Phosphoric Acid Fuel Cells?

Phosphoric Acid Fuel Cells use liquid phosphoric acid as an electrolyte—the acid is contained in a Teflon-bonded silicon carbide matrix—and porous carbon electrodes containing a platinum catalyst. The chemical reactions that take place in the cell are shown in the diagram to the right.

The Phosphoric Acid Fuel Cell (PAFC) is considered the "first generation" of modern fuel cells. It is one of the most mature cell types and the first to be used commercially, with over 200 units currently in use. This type of fuel cell is typically used for stationary power generation, but some phosphoric acid fuel cells have been used to power large vehicles such as city buses.

Phosphoric Acid Fuel Cells are more tolerant of impurities in fossil fuels that have been reformed into hydrogen than Proton Exchange Membrane Fuel Cells, which are easily "poisoned" by carbon monoxide—carbon monoxide binds to the platinum catalyst at the anode, decreasing the fuel cell's efficiency. They are 85 percent efficient when used for the co-generation of electricity and heat, but less efficient at generating electricity alone (37 to 42 percent). This is only slightly more efficient than combustion-based power plants, which typically operate at 33 to 35 percent efficiency. Phosphoric acid fuel cells are also less powerful than other fuel cells, given the same weight and volume. As a result, these fuel cells are typically large and heavy. Phosphoric acid fuel cells are also expensive. Like Proton Exchange Membrane Fuel Cells, Phosphoric acid fuel cells require an expensive platinum catalyst, which raises the cost of the fuel cell. A typical phosphoric acid fuel cell costs between $4,000 and $4,500 per kilowatt to operate.

What are Alkaline Fuel Cells?

Alkaline Fuel Cells (AFCs) were one of the first fuel cell technologies developed, and they were the first type widely used in the U.S. space program to produce electrical energy and water onboard spacecraft. These fuel cells use a solution of potassium hydroxide in water as the electrolyte and can use a variety of non-precious metals as a catalyst at the anode and cathode. High-temperature Alkaline Fuel Cells operate at temperatures between 100°C and 250°C (212°F and 482°F). However, newer AFC designs operate at lower temperatures of roughly 23°C to 70°C (74°F to 158°F)

Alkaline Fuel Cells' high performance is due to the rate at which chemical reactions take place in the cell. They have also demonstrated efficiencies near 60 percent in space applications.

The disadvantage of this fuel cell type is that it is easily poisoned by carbon dioxide.
In fact, even the small amount of CO₂ in the air can affect this cell's operation, making it necessary to purify both the hydrogen and oxygen used in the cell. This purification process is costly. Susceptibility to poisoning also affects the cell's lifetime (the amount of time before it must be replaced), further adding to cost.

Cost is less of a factor for remote locations such as space or under the sea. However, to effectively compete in most mainstream commercial markets, these fuel cells will have to become more cost-effective. Alkaline Fuel Cells have been shown to maintain sufficiently stable operation for more than 8,000 operating hours. To be economically viable in large-scale utility applications, these fuel cells need to reach operating times exceeding 40,000 hours, something that has not yet been achieved due to material durability issues. This is possibly the most significant obstacle in commercializing this fuel cell technology.

What are Direct Methanol Fuel Cells?

Most fuel cells are powered by hydrogen, which can be fed to the fuel cell system directly or can be generated within the fuel cell system by reforming hydrogen-rich fuels such as methanol, ethanol, and hydrocarbon fuels. Direct Methanol Fuel Cells (DMFCs), however, are powered by pure methanol, which is mixed with steam and fed directly to the fuel cell anode.

Direct Methanol Fuel Cells do not have many of the fuel storage problems typical of some fuel cells since methanol has a higher energy density than hydrogen—though less than gasoline or diesel fuel. Methanol is also easier to transport and supply to the public using our current infrastructure since it is a liquid, like gasoline.

Direct Methanol Fuel Cell technology is relatively new compared to that of fuel cells powered by pure hydrogen, and Direct Methanol Fuel Cell research and development are roughly 3-4 years behind that for other fuel cell types.

What are Proton Exchange Membrane (PEM) Fuel Cells?

Proton Exchange Membrane Fuel Cells - sometime called a Polymer Electrolyte Membrane Fuel Cell —  deliver high power density and offer the advantages of low weight and volume, compared to other fuel cells. Proton Exchange Membrane Fuel Cells use a solid polymer as an electrolyte and porous carbon electrodes containing a platinum catalyst. They need only hydrogen, oxygen from the air, and water to operate and do not require corrosive fluids like some fuel cells. They are typically fueled with pure hydrogen supplied from storage tanks or onboard reformers.

Proton Exchange Membrane Fuel Cells operate at relatively low temperatures, around 80°C (176°F). Low temperature operation allows them to start quickly (less warm-up time) and results in less wear on system components, resulting in better durability. However, it requires that a noble-metal catalyst (typically platinum) be used to separate the hydrogen's electrons and protons, adding to system cost. The platinum catalyst is also extremely sensitive to CO poisoning, making it necessary to employ an additional reactor to reduce CO in the fuel gas if the hydrogen is derived from an alcohol or hydrocarbon fuel. This also adds cost. Developers are currently exploring platinum/ruthenium catalysts that are more resistant to CO.

Proton Exchange Membrane Fuel Cells are used primarily for transportation applications and some stationary applications. Due to their fast startup time, low sensitivity to orientation, and favorable power-to-weight ratio, Proton Exchange Membrane Fuel Cells are particularly suitable for use in passenger vehicles, such as cars and buses.

A significant barrier to using these fuel cells in vehicles is hydrogen storage. Most fuel cell vehicles (FCVs) powered by pure hydrogen must store the hydrogen onboard as a compressed gas in pressurized tanks. Due to the low energy density of hydrogen, it is difficult to store enough hydrogen onboard to allow vehicles to travel the same distance as gasoline-powered vehicles before refueling, typically 300-400 miles. Higher-density liquid fuels such as methanol, ethanol, natural gas, liquefied petroleum gas, and gasoline can be used for fuel, but the vehicles must have an onboard fuel processor to reform the methanol to hydrogen. This increases costs and maintenance requirements. The reformer also releases carbon dioxide (a greenhouse gas), though less than that emitted from current gasoline-powered engines.

What are Protonic Ceramic Fuel Cells?

Protonic Ceramic Fuel Cells (PCFC) are a relatively new type of fuel cell is based on a ceramic electrolyte material that exhibits high protonic conductivity at elevated temperatures.

Protonic Ceramic Fuel Cells share the thermal and kinetic advantages of high temperature operation at 700 degrees Celsius with molten carbonate and solid oxide fuel cells, while exhibiting all of the intrinsic benefits of proton conduction in Proton Exchange Membrane Fuel Cells and Phosphoric Acid Fuel Cells.

The high operating temperature is necessary to achieve very high electrical fuel efficiency with hydrocarbon fuels. Protonic Ceramic Fuel Cells can operate at high temperatures and electrochemically oxidize fossil fuels directly to the anode. This eliminates the intermediate step of producing hydrogen through the costly reforming process. Gaseous molecules of the hydrocarbon fuel are absorbed on the surface of the anode in the presence of water vapor, and hydrogen atoms are efficiently stripped off to be absorbed into the electrolyte, with carbon dioxide as the primary reaction product. Additionally, Protonic Ceramic Fuel Cells have a solid electrolyte so the membrane cannot dry out as with Proton Exchange Membrane Fuel Cells, or liquid can't leak out as with Phosphoric Acid Fuel Cells.


What are Solid Oxide Fuel Cells?

Solid Oxide Fuel Cells (SOFCs) use a hard, non-porous ceramic compound as the electrolyte. Since the electrolyte is a solid, the cells do not have to be constructed in the plate-like configuration typical of other fuel cell types. Solid Oxide Fuel Cells are expected to be around 50-60 percent efficient at converting fuel to electricity. In applications designed to capture and utilize the system's waste heat (co-generation), overall fuel use efficiencies could top 80-85 percent.

Solid Oxide Fuel Cells operate at very high temperatures—around 1,000°C (1,830°F). High temperature operation removes the need for precious-metal catalyst, thereby reducing cost. It also allows Solid Oxide Fuel Cells to reform fuels internally, which enables the use of a variety of fuels and reduces the cost associated with adding a reformer to the system.

Solid Oxide Fuel Cells are also the most sulfur-resistant fuel cell type; they can tolerate several orders of magnitude more sulfur than other cell types. In addition, they are not poisoned by carbon monoxide (CO), which can even be used as fuel. This allows Solid Oxide Fuel Cells to use gases made from coal.

High-temperature operation has disadvantages. It results in a slow startup and requires significant thermal shielding to retain heat and protect personnel, which may be acceptable for utility applications but not for transportation and small portable applications. The high operating temperatures also place stringent durability requirements on materials. The development of low-cost materials with high durability at cell operating temperatures is the key technical challenge facing this technology.

Scientists are currently exploring the potential for developing lower-temperature Solid Oxide Fuel Cells operating at or below 800°C that have fewer durability problems and cost less. Lower-temperature Solid Oxide Fuel Cells produce less electrical power, however, and stack materials that will function in this lower temperature range have not been identified.

What are Regenerative Fuel Cells?

Regenerative Fuel Cells produce electricity from hydrogen and oxygen and generate heat and water as byproducts, just like other fuel cells. However, Regenerative Fuel Cells can also use electricity from solar power or some other source to divide the excess water into oxygen and hydrogen fuel—this process is called "electrolysis." This is a comparatively young fuel cell technology being developed by NASA and others.

About Us:

Our cogeneration and trigeneration energy systems exceed 85% net system efficiency. This translates into significant energy savings for our clients as well as reductions in greenhouse gas emissions.

We offer the following products, services and consulting services:

• Automated Demand Response

• Biomethane

• Carbon Emissions Consulting & Solutions

• Carbon Free Energy

• Clean Energy Parks

• Clean Power Generation

• Cogeneration Plants

• Concentrating Solar Power

• Decentralized Energy

• Demand Side Management

• Distributed Generation

• Flywheel Energy Storage

• Molten Carbonate Fuel Cells

• Onsite Power Generation

• Micro-Grid Systems

• Net Zero Energy Buildings

• Peak-Shaving

• Phosphoric Acid Fuel Cells

• Pollution Free Power

• Renewable Energy Centers

• Renewable Energy Parks

• Solar Cogeneration

• Solar Electric Power Systems

• Solar Trigeneration

• Solar Water Heating Systems

• Thin Film Photovoltaics

• Trigeneration

• Waste To Energy

• Waste to Fuel

We provide our clients with comprehensive clean power generation solutions, including "carbon free energy" and "pollution free power" systems.

Our clients benefit from our extensive experience and knowledge of issues relating to renewable energy, environmental and sustainability issues as well as implementing real world solutions that accomplish our client's goals and objectives.

We have been providing products, consulting services, information, education and solutions for reducing:

Carbon Emissions (www.CarbonEmissions.com)

Carbon Dioxide Emissions (www.CarbonDioxideEmissions.com)

and Greenhouse Gas Emissions (www.GreenhouseGasEmissions.com) since 2003.

No company is better prepared to help their clients in meeting these legal and environmental challenges with proven solutions that help save money through significantly lower energy expenses while simultaneously reducing or eliminating their Greenhouse Gas Emissions, or eliminating them entirely, than us!

We are the pioneers of "Carbon Free Energy," "Pollution Free Power" and "Clean Power Generation" strategies and solutions that can completely eliminate your company's Greenhouse Gas Emissions.  Our solutions and strategies provide our customers with an integrated approach to today's climate challenges with real world solutions that solve these problems, while reducing energy expenses.

Why Choose Us?

We have proven solutions, products and services that can reduce or completely eliminate your company's Greenhouse Gas Emissions. Our staff and team has the technical expertise, depth of knowledge and affiliations with major universities that are on the cutting edge of research that is developing the solutions the world needs to solve these problems. And, we are taking these university solutions to market with products and services that solve the challenges and problems relating to climate change, fossil fuels and greenhouse gas emissions. In fact, we don't see these as problems any longer, but opportunities to help our clients get the jump on their competition, and our solutions are providing our customers with a sustainable, and durable competitive advantage.

Frequently Asked Questions

How does our company receive credit for our early actions at reducing our Greenhouse Gas Emissions?

Before taking action independently, companies should first contact us so that we can help them establish a Greenhouse Gas Emissions "inventory" which we can provide as a qualified third-party.

What is the generally accepted format for sustainability reports?

At present, most companies are using the Global Reporting Initiative (GRI) protocols as this provides for the "triple bottom line" reporting which includes social, economic and environmental performance measurements. We also line to include in our triple bottom line "people, planet and profit."

What are the benefits of verifying your company's Greenhouse Gas Emissions?

1.  Satisfies regulatory compliance regulations as well as accounting regulations relating to accuracy in reporting to customers, stockholders and other company stakeholders.

2.  Prepare for present and future regulatory compliance - Cap and Trade is coming!

3.  Establishes a present-day baseline for receiving future Greenhouse Gas Emissions Credits when your company begins taking action to reduce Greenhouse Gas Emissions.

4.  Provides a blueprint and strategy for knowing how, where and when to begin reducing your company's Greenhouse Gas Emissions.

What is "Cogeneration"?

Did you know that 10% of our nation's electricity now comes from "cogeneration" plants?

What is a Power Purchase Agreement?

A Power Purchase Agreement is a legal agreement wherein our clients agree to buy either the power (electricity) or the power and energy (hot water, steam and/or chilled water for air-conditioning) - or both - directly from us, for a term of 10 to 20 years, where we have installed, own and operate our solar energy systems.

In nearly every case, once we have installed our solar energy systems at our client's facility, we can immediately reduce our (commercial) client's electricity expenses by 10% over what they were paying for their power electricity from their electric utility.

The right Power Purchase Agreement, solar cogeneration or solar trigeneration energy solution, may save your company hundreds of thousands, and possibly millions of dollars over the term of the agreement.

Simultaneously, having the wrong or poorly drafted PPA can cost your company thousands or millions of dollars.  You wouldn't consult a brain surgeon to treat your child's broken bone!  Selecting the wrong attorneys, law firm or team to promulgate or re-negotiate your Power Purchase Agreement can leave you "powerless" and penniless - and still requiring the skills and expertise of competent and qualified professionals to resolve the situation.

Because a Power Purchase Agreement is at the "heart" and underlying foundation of our projects, we can help your business with the selection and oversight of PPA's.

We can help your city or community create a Municipal Utility District or Public Utility District that may then qualify for our very competitively priced energy and electricity rates. Now is the time for cities, municipal and governmental clients to consider having our company install one of our renewable power and energy systems that will generate "clean" power and energy, lower costs, and avoid the coming electricity shortages and grid congestion problems!

Products and services provided by us include the following power and energy project development services:

• Project Engineering Feasibility & Economic Analysis Studies

• Engineering, Procurement and Construction

• Environmental Engineering & Permitting

• Project Funding & Financing Options; including Equity Investment, Debt Financing, Lease and Municipal Lease

• Shared/Guaranteed Savings Program with No Capital Investment from Qualified Clients

• Project Commissioning

• 3rd Party Ownership and Project Development

• Long-term Service Agreements

• Operations & Maintenance

• Green Tag (Renewable Energy Credit, Carbon Dioxide Credits, Emission Reduction Credits) Brokerage Services; Application and Permitting

_______________________________________________________

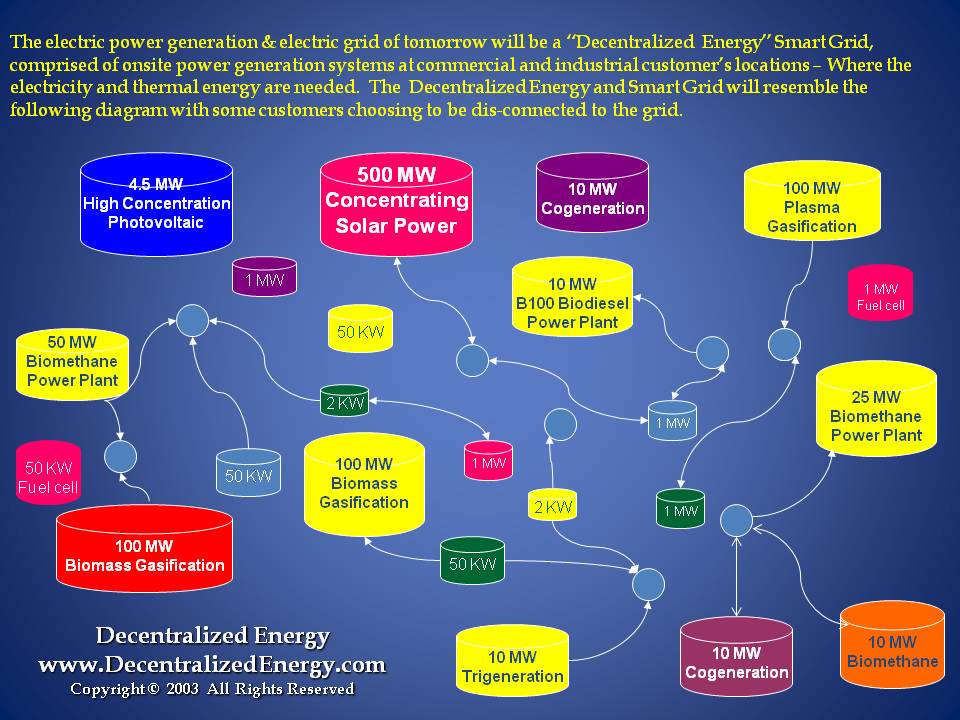

How we make and distribute electricity is changing!

The electric power generation, transmission and distribution system (the electric "grid") is changing and evolving from the electric grid of the 19th and 20th centuries, which was inefficient, highly-polluting, very expensive and “dumb.”

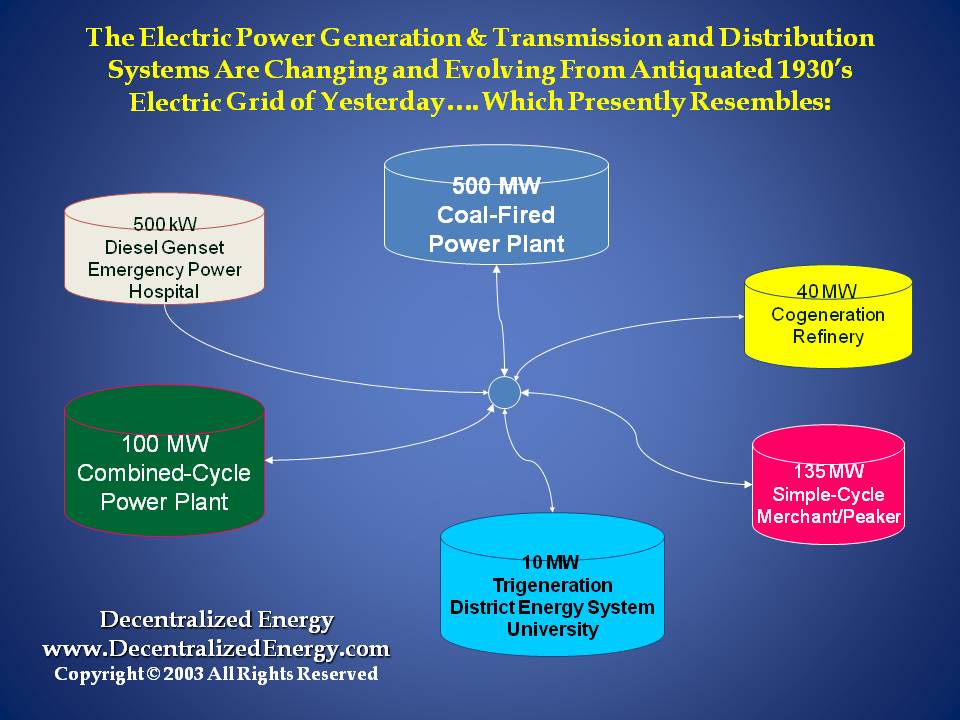

The "old" way of generating and distributing energy resembles this slide:

The carbon clock tracks total carbon dioxide emissions in metric tons since 1750.

Since 1750, humans have emitted over 5 trillion pounds of carbon dioxide into the atmosphere. Roughly half of this has ended up in the oceans where it is beginning to damage the coral reefs. The other half is still in the atmosphere and causing global warming. Each pound of CO2 takes up as much space as a 500 pound person.

The formula (which should be good for a year or two) is:
C(t) = 2.58 ×1012 + 1240×t, where t is seconds since the start of 2007.

C is tonnes (metric tons) of carbon dioxide emissions.
2205 x C gives pounds of carbon dioxide emissions.

That comes to over 43 billion tons/year or over 86 trillion pounds/year.

Carbon dioxide (2) = 1 carbon atom with 2 oxygen atoms.
Carbon has relative weight 12 and Oxygen 16.
So it takes only 12 pounds of carbon to make 12+16+16 = 44 pounds of CO2.

___________________________________________________

This Means that 65% of America's Energy Supplies are Now Imported from Suppliers from Foreign Countries.

Simply put, about 65% of the gasoline in your car's gas tank, comes from a foreign country.

EVERY day, the U.S. must IMPORT over 13 million bbls of oil from foreign countries and foreign suppliers to meet demand.

At $80/barrel of oil, this also means that $1,040,000,000.00 American Dollars leave our country, EVERY DAY, to foreign countries/suppliers of our fossil fuels, to pay for the energy we need.

That's $1 Billion EVERY day leaving our economy, and going to support a foreign country's economy.

Talk about our foreign trade deficit..... nearly $400 Billion each year, leaves our country to pay for our oil addiction and the energy we need.  To be exact, that's $379,600,000,000.00 American Dollars.

This is NOT acceptable.

America needs to quickly transition to Energy Independence.

Renewable Energy is the Only Way America Can Achieve Energy Independence.

Millions of new and sustainable American jobs would be created here at home, if we would end our addiction to foreign fossil fuels, and quickly transition to an economy based on renewable energy and renewable fuels, produced here in the U.S.A.

The good news is that today, America already has all of the Renewable Energy Resources and Renewable Energy Technologies needed to make American Energy Independence a reality.

According to Monty Goodell, Founder and Chairman of the Renewable Energy Institute, "our increased dependence and reliance on foreign energy supplies represents a Clear and Present Danger to our national security, our economy, and the lives and livelihood of every American. Energy - including the energy we use from imported fossil fuels, is the very "lifeblood" of the American economy as it is for every industrialized country.  An economy dies without it's lifeblood of energy. This Clear and Present Danger we face is far more serious than the problems related to greenhouse gas emissions.  And while greenhouse gas emissions are very serious issue, in the long-term, pales in comparison to America's vital national security interests and America's economic stability in the short term.  For this reason alone, America needs to transition away from its addiction to foreign energy supplies. And America's abundant renewable energy resources such as the energy we receive from the sun, and renewable energy technologies such as concentrated solar power (CSP) plants - can supply 100% of America's power requirements with a concentrating solar power plant measuring 75 miles by 75 miles, located in the Southwest U.S.  By generating America's power from concentrating solar power plants, America resolves its' short-term Clear and Present Danger as it relates to importing its energy from foreign countries, and the long-term problems relating to greenhouse gas emissions."

Continuing, Mr. Goodell states that "too many Americans have forgotten what happened to us in 1973, when the Arabs and OPEC brought the United States economy to a screeching halt during the OPEC Oil Embargo.  This happened because they (mainly the country of Saudi Arabia) disagreed with our foreign policy and is the reason why they "turned off the tap" of our need for their oil supplies. When Saudi Arabia and OPEC stopped the vital flow of oil to our country in 1973, they caused an "oil shock" that severely and negatively impacted our economy.

Mr. Goodell's question for us to ponder is, "do these countries who sell us 60% of our daily energy requirements, like us and our foreign policy, or might they leverage our addiction to their fossil fuels, and turn off the tap to make us adjust or revise our foreign policy??  Like any addict, America's foreign policy may be held hostage to its addiction, and in this case, our addiction to foreign oil, may over-ride our national interests."

Have American's forgotten the gas shortages and long lines at
their gas stations to get gas during the Arab Oil Embargo of 1973?

"Apparently so."  Mr. Goodell states that "in 1973, America was 'addicted' and 'over the barrel' of foreign oil to the amount of 40%.  Forty percent of our energy 'needs' in 1973 came from countries - many of which didn't like us then, and I'm afraid, many of them still don't.  The difference between 1973 and today - is that today we receive 50% MORE foreign oil now than we did in 1973.  And now we know about the problems relating to greenhouse gas emissions that we didn't know then.  America needs to change course, and change course now, in terms of its' energy supplies and how we keep America's economy strong, without the threat of being held hostage to a middle-east tyrant or regime, that could once again, turn on us, and turn off our supply of foreign oil."

Remember ????

"Sadly," Monty Goodell continues, "most Americans have forgotten the long lines of people waiting in their cars - lined up and waiting for gasoline at their nearby gas station, with lines that were many blocks long.  And, after waiting 4-5 hours, many even waiting overnight in many places, to finally take their turn to fill up their car with gasoline, only to find that the gas station had run out of gas."

"Let me Repeat.... That was 1973 when we imported 40% of our daily energy requirements in the form of crude oil from overseas, and from foreign countries - and many of these from countries that don't like us.

Today, over 35 years later, America has yet to learn the lesson.  We cannot continue our reliance on energy from foreign countries that supply us with 60% of the crude oil that our refineries use as a feedstock for producing gasoline and diesel fuel for our cars and trucks comes from overseas.

America is "over the barrel" and it's not our barrel, but the barrels of oil that we are addicted by and owned by other countries.  Why have we not learned the lessons we needed to learn in 1973 when we were cut-off from the vital energy supplies we need?

Countries like China, are growing rapidly, and have an insatiable need for crude oil. China, with their booming economy, is increasingly growing in its clout and control over international supplies of crude oil - whether they do this through their ability to buy as much oil as they need on a daily basis, or whether they simply but American drilling rigs, technology, and explore and produce oil and gas from their own fields. China, is buying large amounts of oil for their country, and causing upward pricing on declining supplies. What happens if Russia, with all of their oil and natural gas, along with China and Venezuela, with or without the help of OPEC, decided to NOT sell oil to us????

To be sure, greenhouse gas emissions are a problem, and to some, greenhouse gas emissions are also a Clear and Present Danger, but not to the extent that it presents an imminent Clear and Present Danger.

America's reliance for 60% of our energy "needs" coming from foreign suppliers is un-acceptable.

The "driver" to get America to begin reducing and eliminating fossil fuel use should be our nation's national security and the welfare and safety of its citizens. And this can all begin with developing and investing in our own renewable energy resources and renewable energy technologies, let's start by putting solar on every rooftop that has a clear and unobstructed view of the Southern sky. See www.RooftopPV.com  or  www.DistributedPV.com  for more information.  Let's create incentives begin with adopting a national "Feed In Tariff" as Germany did in 1990.

We simply do NOT have the luxury of time on our hands.  We need to end our dependence and reliance on foreign fossil fuels, especially from countries that don't like us! We need to rapidly begin expanding renewable energy resources and renewable energy technologies from our vast and abundant renewable energy resources, such as; solar, solar energy systems, solar cogeneration, solar trigeneration, "solar on every roof," along with; Biomass Gasification, B100 Biodiesel, Biomethane, E100 Ethanol (from cellulosic, agricultural waste, sugar cane, etc., and NOT from corn), Geothermal Power Plants, Natural Wastewater Treatment, Synthesis Gas, Waste To Energy, Waste To Fuel and Wind Power Generation where it makes economic and environmental sense."

For more information, call/email:

___________________________________________________

Are you doing your part to prevent Climate Change and End America's Reliance on Foreign Energy?

Our following EcoGeneration technologies, including; Biomethane, B100 Biodiesel and Synthesis Gas Fuels Generated from our "Waste to Fuel" technologies,  are Carbon Free Energy and Pollution Free Power solutions that will:

* forever change the way energy is generated and used.

* eliminate or greatly reduce our customer's electric demand charges and electric expenses.

* slow, stop and eventually reverse climate change by reducing and then eliminating anthropogenic greenhouse gas emissions - of which carbon dioxide emissions makes up 80% of all greenhouse gas emissions.

* reduce and eventually eliminate the use of coal and other fossil fuels.

* reduce the need for inefficient and expensive central power plants owned by utility companies.

* promote energy independence.

* end America's dependence on oil from OPEC and other countries in the Middle-East, Venezuela and end our need for importing natural gas from Russia.

Carbon Dioxide Emissions
www.CarbonDioxideEmissions.com

Carbon Emissions
www.CarbonEmissions.com

Carbon Free Energy
www.CarbonFreeEnergy.com

Clean Power Generation
www.CleanPowerGeneration.com

Cogeneration
www.Cogeneration.net

Concentrating Solar Power
www.ConcentratingSolarPower.com

Distributed PV
www.DistributedPV.com

Distributed Solar Generation
www.DistributedSolarGeneration.com

EcoGeneration
www.EcoGeneration.com

Greenhouse Gas Emissions
www.GreenhouseGasEmissions.com

Net Zero Energy
www.NetZeroEnergy.com

Net Zero Energy Building
www.NetZeroEnergyBuilding.com

Pollution Free Power
www.PollutionFreePower.com

Rooftop PV
www.RooftopPV.com

Solar Energy Systems
www.SolarEnergySystems.net

Solar Power Parks
www.SolarPowerParks.com

Solar Cogeneration
www.SolarCogeneration.com

Solar Trigeneration
www.SolarTrigeneration.com

Synthesis Gas
www.SynthesisGas.com

Trigeneration
www.Trigeneration.com

Waste Heat Recovery
www.WasteHeatRecovery.com

Waste to Energy
www.WasteToEnergy.net

Waste To Fuel
www.WasteToFuel.com

Wind Power Generation
www.WindPowerGeneration.com

Wind Power Technologies
www.WindPowerTechnologies.com

___________________________________________________

We support the Renewable Energy Institute by donating a portion of our profits to the Renewable Energy Institute in their efforts to reduce fossil fuel use through renewable energy and their goals to end pollution from Carbon Dioxide Emissions and Greenhouse Gas Emissions.

The Renewable Energy Institute is "Changing The Way The World Makes and Uses Energy by Providing Research & Development, Funding and Resources That Create Pollution Free Power, Carbon Free Energy & Renewable Energy Technologies."

The information contained on this site is copyright protected and
cannot be reproduced in any form or manner without our consent.

Fuel From Water
www.FuelFromWater.com

info@FuelFromWater.com

Renewable Energy Institute

Copyright © 2007
All Rights Reserved
